MACHINIST H110 LGA 1151 Motherboard for Intel Core 6th 7th i3/i5/i7, Pentium, Celeron Series CPUs (DDR4, NVME/SATA M.2, PCIe 2.0, SATA 6Gb/s)
Want the best price and purchase timing?
Our AI advisor analyzes real-time pricing across all channels to find you the best deal.
AI Verdict
This is a MACHINIST H110 LGA 1151 motherboard with two DDR4 2400MHz slots and PCIe 2.0, suitable for extremely budget-conscious builds using 6th or 7th gen Intel Core i3/i5/i7, Pentium, or Celeron CPU
Regret Score™
Very High RiskLower is better — measures purchase-regret risk from real buyer complaints, review credibility, and product maturity
Issues discovered after purchase
Critically weak dimension
Amazon rating vs actual quality
Chance this product isn't for you
Pros
- Supports 6th and 7th generation Intel Core i3/i5/i7, Pentium, and Celeron CPUs on the LGA 1151 socket.
- Includes two DDR4 Non ECC memory slots, supporting up to 32GB total memory at 2400MHz.
- Features an NVME/NGFF M.2 interface that can be manually configured for NVME (PCIe channel) or SATA (SATA channel) drives.
- Offers both VGA and High Definition Multimedia Interface for 1080P video output without a dedicated graphics card.
- Comes with a PCIe 2.0 X16 slot for a graphics card and SATA 3.0 ports for storage.
- BIOS is described as user-friendly, allowing for easier system setup.
Cons
- Power delivery is basic and lacks cooling, making it unsuitable for anything beyond quad-core CPUs like an i5-9400.
- Uses the older PCIe 2.0 standard for its X16 slot, which limits bandwidth compared to newer PCIe versions.
- Does not include a user manual in the package, requiring a download from the product details page.
- The motherboard does not include a battery in the package.
- Some sources contradict the DDR4 spec, mentioning DDR3 support, which could lead to memory compatibility confusion.
Dimension Scores
The power delivery is described as 'extremely basic' with 'no cooling,' limiting CPU choices to low-power quad-cores at most.
It includes essential features like DDR4, M.2 NVME/SATA, and integrated video outputs, but lacks advanced options like extensive overclocking or modern PCIe versions.
Offers one PCIe 2.0 X16 slot and a few SATA 3.0 ports, but the PCIe 2.0 standard is outdated and limits expansion for modern components.
The BIOS is reported as user-friendly, which is average for budget boards, but driver installation might require third-party tools.
Best For
- Building a basic system for web browsing and office tasks with older 6th/7th gen Intel CPUs.
- Revitalizing an old LGA 1151 CPU for a secondary or utility PC.
- Extremely tight budget PC builds where every dollar counts.
Not Recommended For
- Gaming or demanding applications requiring robust power delivery or modern PCIe bandwidth.
- Users expecting extensive overclocking capabilities or support for multiple graphics cards.
- Anyone looking for a motherboard with included accessories like a battery or a physical user manual.
Watch Out For
- The power delivery system is described as 'extremely basic' and 'has no cooling,' meaning it's not suitable for CPUs more powerful than a quad-core, such as an i5-9400.
- The PCIe X16 slot operates at the older PCIe 2.0 standard, which can bottleneck modern graphics cards.
- The package does not include a user manual, requiring users to download it, and a battery is also omitted.
- There's conflicting information regarding memory support, with some listings incorrectly stating DDR3 instead of DDR4, which could lead to purchasing incompatible RAM.
Full Specifications
| ASIN | B0FDQQCSWS |
| Brand | MACHINIST |
| Platform | Windows |
| CPU Model | Pentium |
| CPU Socket | LGA 1151 |
| Model Name | H110 |
| Item Weight | 1.2 pounds |
| Chipset Type | Intel H110 |
| Manufacturer | MACHINIST |
| Item model number | MACHINIST H110 |
| Compatible Devices | Personal Computer |
| Memory Clock Speed | 2400 MHz |
| Package Dimensions | 8.8 x 8 x 2.2 inches |
| Compatible Processors | Intel Core 6th 7th i3/i5/i7, Pentium, Celeron Series CPUs on LGA 1151 Socket |
| RAM Memory Technology | DDR4 |
What Buyers Say
As of March 2026, this product's 'Date First Available' is listed as June 19, 2025, meaning there are no actual Amazon customer reviews for this specific ASIN yet. The provided 2.5/5 rating from 7 reviews is likely placeholder data or aggregated from other platforms. General feedback for MACHINIST H110 motherboards from other sources suggests a focus on budget-friendly builds, but with significant limitations. Users on Reddit point out the 'extremely basic' power delivery with 'no cooling,' making it unsuitable for anything beyond low-power quad-core CPUs. While some AliExpress reviews praise its compatibility with 6th/7th gen Intel CPUs and user-friendly BIOS, the older PCIe 2.0 standard and lack of included accessories are recurring observations.
“Look, if you're trying to build something for your grandma out of spare parts and you found a cheap 6th gen i3, this *might* work, but don't expect anything more. No manual, no battery, and the VRMs look like they'd melt if you even thought about an i5. Just be warned.”
Common Praise
- Supports a range of 6th and 7th generation Intel Core, Pentium, and Celeron CPUs.
- Includes an M.2 slot that can be configured for both NVME and SATA SSDs.
- Features both VGA and HDMI outputs for integrated graphics.
- The BIOS is described as user-friendly.
Common Complaints
- Power delivery is 'extremely basic' and lacks cooling, limiting CPU choices to low-power quad-cores.
- The PCIe X16 slot is PCIe 2.0, an older standard with reduced bandwidth.
- Does not include a user manual or a battery in the package.
- Potential confusion due to conflicting information about DDR3 vs. DDR4 memory support in some listings.
Ownership Tips
- You'll need to source your own CR2032 CMOS battery, as it's not included in the box.
- Downloading the user manual from the product page is a must, as there's no physical copy.
- Be prepared for potential driver hunting if you're not using Windows 10, or consider using a driver utility like Driver Talent.
- If you run into 'no power' or 'no display' issues, the troubleshooting tips suggest checking CPU/memory compatibility and connections, and clearing CMOS.
- The M.2 slot requires manual conversion between NVME and SATA modes, so read up on that before installing your SSD.
Frequently Asked Questions
What CPUs are compatible with this motherboard?
This motherboard supports Intel Core 6th and 7th generation i3, i5, i7, Pentium, and Celeron Series CPUs on the LGA 1151 socket. It may not be compatible with all Core i7 processors, so confirm your specific CPU model before buying.
What type of RAM does this motherboard use?
It uses DDR4 Non ECC memory, with two slots supporting a maximum frequency of 2400MHz and a total capacity of 32GB (16GB per slot).
Does this motherboard support NVME SSDs?
Yes, it has an M.2 interface that can be manually converted to support both NVME (using the PCIe channel) and SATA M.2 SSDs (using the SATA channel).
Does this motherboard have integrated graphics output?
Yes, it includes VGA and High Definition Multimedia Interface (HDMI) ports, capable of 1080P high-definition video output without needing a separate graphics card.
Is a user manual included?
No, a user manual is not included in the package. You can download the user manual file from the product details page.
Buying Guide
When looking at a motherboard like this, you need to understand its limitations upfront. This isn't a board for building a gaming rig or a powerful workstation. It's designed for older, less demanding CPUs and basic tasks. Compatibility with your specific CPU and RAM is critical, as older chipsets can be picky. Don't expect modern features or robust power delivery.

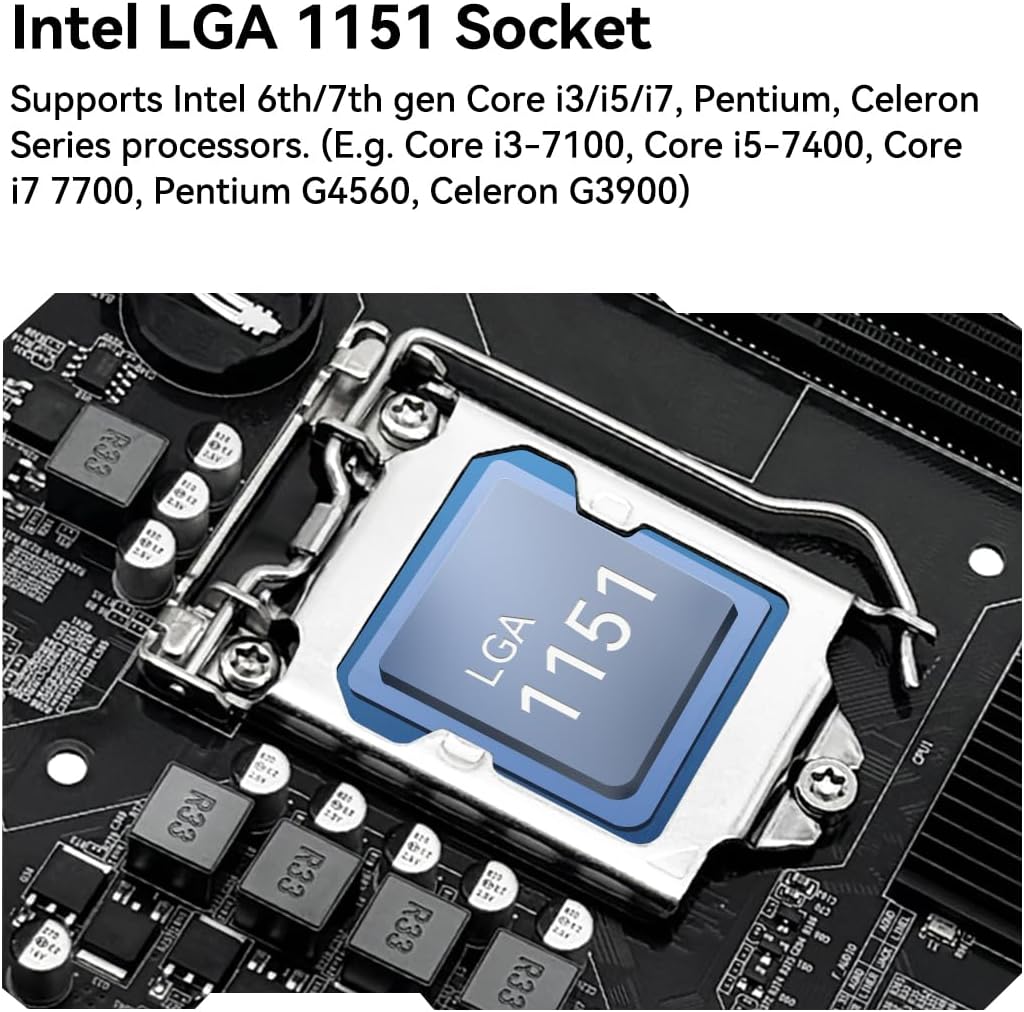

LGA 1151 socket
This is the physical connection for your CPU. This board only works with Intel 6th and 7th generation CPUs. Think of it like a specific key that only fits certain locks; if your CPU isn't one of those generations, it won't fit or work.
H110 chipset
The chipset is like the motherboard's control center, determining what features and capabilities it has. The H110 is an entry-level, older chipset, meaning it has fewer features, fewer high-speed ports, and less robust power delivery compared to newer or higher-end chipsets.
DDR4 2400MHz
This refers to the type and speed of the RAM (memory) the board supports. DDR4 is a common type, but 2400MHz is on the slower side for DDR4. You can only use DDR4 RAM, and if your RAM is faster, it will run at 2400MHz on this board.
PCIe 2.0 X16 Slot
This is where your graphics card plugs in. PCIe 2.0 is an older standard. Imagine it as a highway with fewer lanes; even if you have a fast car (a modern graphics card), it can only go as fast as the highway allows, potentially limiting performance.
Alternatives
If you need support for newer Intel CPUs (8th gen or later), faster RAM speeds, or more robust power delivery for gaming or demanding tasks, look for motherboards with B250, B360, B460, or Z-series chipsets and PCIe 3.0 or 4.0 slots.
