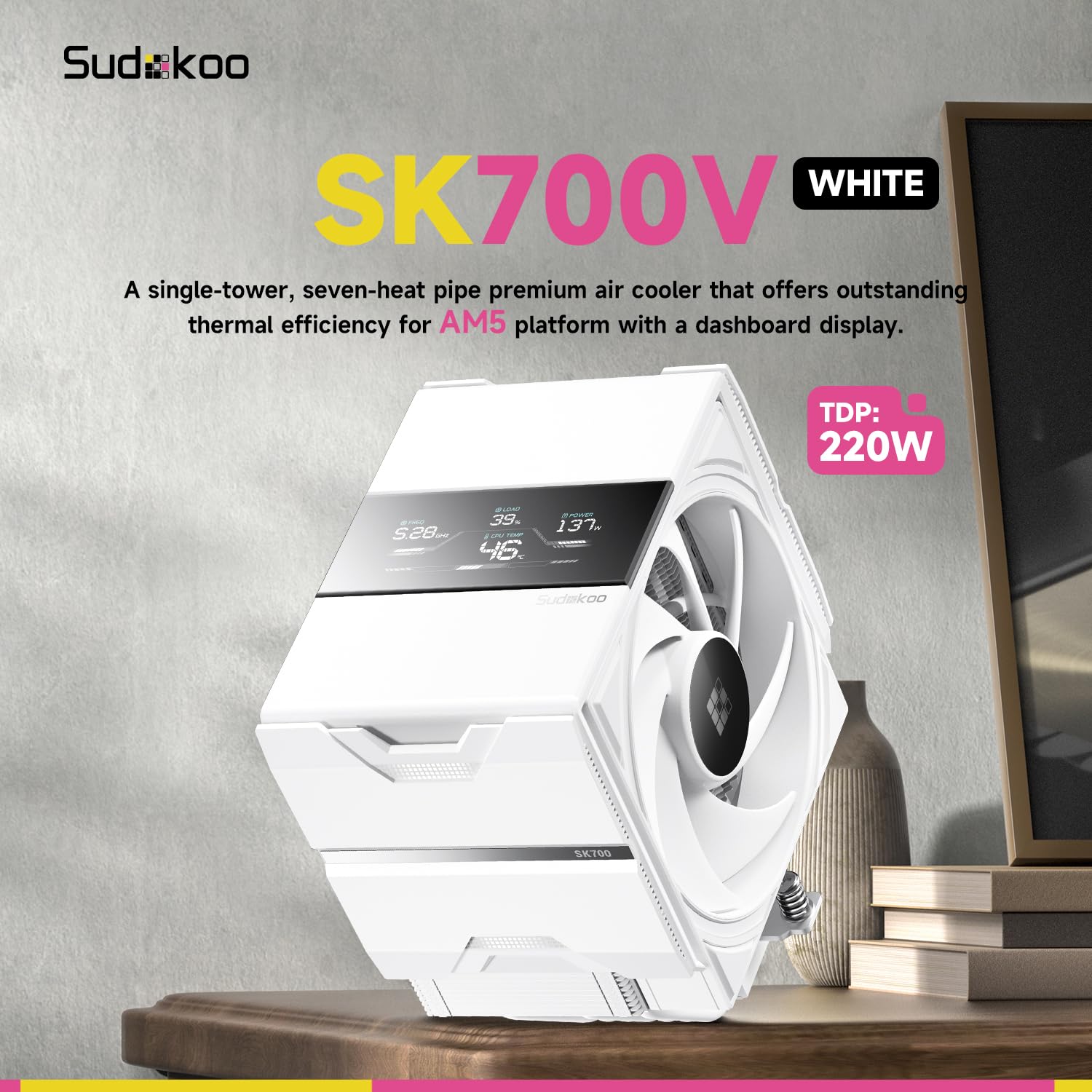

SK700V White AM5 CPU Cooler: 7 Heatpipes CPU Air Cooler with Digital Display for AM5 Exclusive - Single Tower PC Cooling with 120mm FDB PWM Quiet Fan & L-Rail Lock Mount
Want the best price and purchase timing?
Our AI advisor analyzes real-time pricing across all channels to find you the best deal.
AI Verdict
This is a 220W TDP single-tower air cooler with 7 heatpipes and a digital display, exclusively for AM5 CPUs.
This cooler is purpose-built for AM5 CPUs, offering a 220W TDP cooling capacity and specific features like an anti-bend bracket and full RAM clearance that directly address common AM5 build considerations. The integrated digital display for real-time CPU metrics is a unique offering for this platform.
If you need higher cooling capacity for extreme overclocking or future high-TDP AM5 CPUs, consider a dual-tower air cooler or a 240mm/360mm AIO liquid cooler.
Regret Score™
Low RiskLower is better — measures purchase-regret risk from real buyer complaints, review credibility, and product maturity
Issues discovered after purchase
Critically weak dimension
Amazon rating vs actual quality
Chance this product isn't for you
Pros
- Monitors CPU temperature, load, wattage, and frequency in real-time on its digital display, controlled via Sudokoo Control Center MasterCraft (Win10/11 ONLY).
- Provides full RAM clearance due to its offset heatsink design, accommodating tall memory modules.
- Features a 120mm FDB PWM fan with a 0 RPM mode under 5% PWM load, contributing to quiet operation under light loads.
- Offers a tool-free slide-in L-Rail Lock Mount for simplified installation on AM5 motherboards.
- Includes an anti-bend bracket to protect the AM5 CPU during mounting.
- Capable of dissipating up to 220W TDP, performing comparably to some dual-tower coolers in thermal tests.
Cons
- Exclusively compatible with AMD AM5 sockets, limiting its use to a single platform.
- The digital display requires an open USB 2.0 header and Sudokoo Control Center MasterCraft software (Win10/11 ONLY) to function.
- Some users perceive the plastic shell around the display as less premium, feeling "almost toyike" compared to other high-end options.
- Installation, while tool-free for the fan, involves an AM5 contact frame that might be tricky for first-time builders without careful manual review.
Dimension Scores
The cooler handles up to 220W TDP with seven 6mm heat pipes and a 120mm FDB PWM fan, achieving 63°C over ambient on a Ryzen 9800X3D, which is comparable to some dual-tower coolers.
With a maximum noise output of 32.5 dB(A) and a 0 RPM fan mode under low PWM loads, it maintains quiet operation even at higher fan speeds.
The cooler features a nickel-finished copper cold plate, aluminum heatsink, and a smooth coating, with a 'slick looking' design and well-implemented sliding fan rail, though the display's plastic shroud is noted as less premium.
The single 4-pin PWM fan connector and a separate USB 2.0 header connection for the display are standard, but the display's USB cable adds an additional cable to manage.
Best For
- Gamers and overclockers with an AM5 CPU who prioritize real-time CPU metric monitoring on the cooler itself.
- PC builders seeking a single-tower air cooler for an AM5 system that offers full RAM clearance.
- Users who prefer a quiet system, benefiting from the 0 RPM fan mode under low PWM loads.
Not Recommended For
- Systems with Intel CPUs or AMD AM4/older sockets, as it is AM5 exclusive.
- Users who prefer a cooler with dual-fan configurations for potentially higher airflow or redundancy, as this is a single-fan, single-tower design.
- Motherboards like the MSI MAG B850M Mortar (WIFI), with which it is mechanically incompatible.
Watch Out For
- The digital display requires a USB 2.0 header on your motherboard, which might be a limitation if all headers are already in use.
- The cooler is mechanically incompatible with specific motherboards, such as the MSI MAG B850M Mortar (WIFI), requiring users to verify compatibility beyond just the AM5 socket.
- While the fan mounting is tool-free, the overall installation process involving the AM5 contact frame can be "tricky" for those unfamiliar with it.
Full Specifications
| ASIN | B0F1FRLMKR |
| Brand | Sudokoo |
| Voltage | 12 Volts |
| Wattage | 3 watts |
| Material | Aluminum, Copper, Plastic |
| Item Weight | 2.97 pounds |
| Noise Level | 32.5 Decibels |
| Manufacturer | Sudokoo |
| Cooling Method | Air |
| Number of Items | 1 |
| Air Flow Capacity | 66.29 Cubic Feet Per Minute |
| Item model number | SK700V WH Amazon |
| Compatible Devices | Cpu |
| Product Dimensions | 5.75"L x 3.82"W x 6.46"H |
| Power Connector Type | 4-Pin |
| Maximum Rotational Speed | 2200 RPM |
What Buyers Say
This AM5-exclusive cooler often surprises users with its thermal performance, frequently compared to larger dual-tower options despite its single-tower design. The digital display, while a standout feature for real-time monitoring, requires a USB 2.0 header and specific software, which some find less premium in its plastic housing. Installation is generally straightforward for AM5 users due to its dedicated design, but the anti-bend bracket and contact frame process might need careful attention for new builders. Its quiet operation, even at higher RPMs, is a recurring positive observation.
“Man, this thing actually keeps my 7800X3D cool, even when gaming hard, and that screen is actually kinda useful for once, but seriously, why only AM5? And that plastic display shroud feels a bit cheap for the price.”
Common Praise
- Thermal performance is strong, handling up to 220W TDP and competing with dual-tower coolers.
- The digital display provides useful real-time CPU temperature, load, and frequency information.
- Quiet operation, with a 0 RPM fan mode under light loads and low noise even at 2200 RPM.
- Full RAM clearance is achieved through its offset design, preventing interference with tall memory modules.
- Installation is simplified for AM5 due to the dedicated L-Rail Lock Mount and anti-bend bracket.
Common Complaints
- Limited compatibility to AM5 sockets only, excluding Intel and older AMD platforms.
- The plastic shell around the digital display is described as feeling "less premium" or "toyike" by some users.
- Requires a USB 2.0 header and specific software (Sudokoo Control Center MasterCraft) for the digital display to function.
- The price point is considered high by some, especially when compared to larger coolers with similar TDP ratings.
Ownership Tips
- The digital display's visibility and usefulness are dependent on the case's orientation and viewing angle.
- Ensuring the Sudokoo Control Center MasterCraft software is installed and running is crucial for the display to show metrics.
- The anti-bend bracket is a thoughtful inclusion for AM5 CPUs, providing peace of mind during installation.
- The 0 RPM fan mode is genuinely effective for silent operation during desktop use or light loads.
Frequently Asked Questions
What CPU sockets is this cooler compatible with?
This cooler is exclusively compatible with AMD AM5 sockets. It does not support Intel or older AMD AM4 platforms.
Does this cooler interfere with RAM clearance?
No, the Sudokoo SK700V features an offset design and angled heat pipes to ensure full RAM freedom, allowing unobstructed access to memory modules.
What information does the digital display show?
The digital display shows real-time CPU metrics such as temperature (°C/℉), load, wattage, and frequency. It requires the Sudokoo Control Center MasterCraft software (Win10/11 ONLY) and a USB 2.0 header.
How quiet is the fan?
The 120mm FDB PWM fan has adjustable speeds from 500-2200 RPM ±10% and a maximum noise level of 32.5 dB(A). It also has a 0 RPM mode under 5% PWM load for silent operation during light tasks.
What is the cooling capacity (TDP) of this cooler?
The Sudokoo SK700V is rated for a maximum heat dissipation of 220W TDP, making it suitable for powerful AM5 CPUs.
Buying Guide
When looking at CPU air coolers, you're essentially balancing how much heat your CPU generates (its TDP) with how much heat the cooler can dissipate. Bigger isn't always better, but more heat pipes and a larger heatsink usually mean better cooling. Noise levels are also key; a fan with a Fluid Dynamic Bearing (FDB) and a 0 RPM mode means quieter operation when your CPU isn't working hard.
TDP (Thermal Design Power)
This number tells you the maximum amount of heat, in watts, that your CPU can generate under load. Your cooler's TDP rating needs to meet or exceed your CPU's TDP to prevent overheating. Think of it like matching a car's engine size to its cooling system.
Heatpipes
These copper tubes transfer heat away from your CPU's cold plate to the heatsink fins. More heatpipes, especially thicker ones (like 6mm), generally mean more efficient heat transfer and better cooling performance, like having more lanes on a highway for heat to travel.
FDB PWM Fan
FDB (Fluid Dynamic Bearing) fans are quieter and last longer than traditional sleeve bearing fans because they use a thin layer of fluid to reduce friction. PWM (Pulse Width Modulation) means the fan speed can be precisely controlled by your motherboard based on CPU temperature, allowing for quieter operation when cooling demands are low.
RAM Clearance
This refers to whether the cooler's heatsink or fan will physically block your RAM slots. If you have tall RAM modules, especially those with RGB lighting, you need a cooler designed with an offset or a slimmer profile to avoid interference and allow for easy installation or upgrades.
Alternatives
If this cooler's AM5-only compatibility is a dealbreaker, look for coolers with multi-socket support, or if you need more cooling power, search for dual-tower air coolers or 240mm/360mm AIO liquid coolers with higher TDP ratings.
