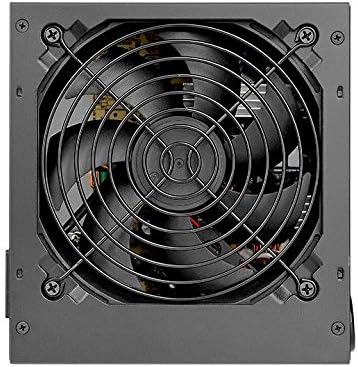

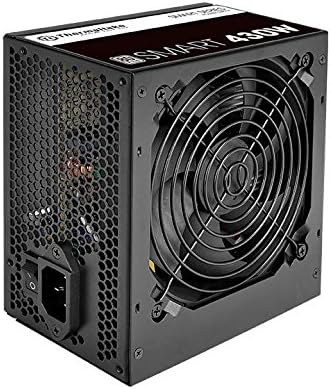

Thermaltake Smart 430W 80+ White Continuous Power ATX 12V V2.3/EPS 12V Active PFC Power Supply PS-SPD-0430NPCWUS-W
Want the best price and purchase timing?
Our AI advisor analyzes real-time pricing across all channels to find you the best deal.
AI Verdict
This $35 power supply belongs exclusively in ultra-budget home office PCs or APU builds, as its 387W 12V rail and high voltage ripple will choke modern gaming graphics cards.
This unit relies on an outdated group-regulated design and caps its 12V output at 387W. It survives basic web browsing and 65W APU loads, but the 91.7mV voltage ripple makes it a liability for dedicated gaming GPUs. Putting a $300 graphics card on a $35 power supply with failing short-circuit protections is a massive gamble.
Step up to a Corsair CX450M or EVGA 500 BQ to get an independent DC-to-DC topology and a true 450W on the 12V rail.
Regret Score™
High RiskLower is better — measures purchase-regret risk from real buyer complaints, review credibility, and product maturity
Issues discovered after purchase
Critically weak dimension
Amazon rating vs actual quality
Chance this product isn't for you
Pros
- Costs under $40, leaving budget for other core components
- Includes a 5-year warranty, which is rare for the sub-$40 price bracket
- Hits 84.2% efficiency at 40% load, passing the basic 80 Plus White certification
- 120mm cooling fan stays quiet under 200W loads
Cons
- 12V rail only outputs 387 watts, falling 43 watts short of the advertised 430W capacity
- Voltage ripple hits 91.7 millivolts at full load, exceeding the 80mV recommended maximum
- Group-regulated design causes voltage drops on the 5V rail when the 12V rail is heavily loaded
- EPS 12V CPU cable is shorter than advertised, making routing difficult in mid-tower cases
Dimension Scores
12V rail only hits 387W and voltage ripple reaches 91.7mV at full load.
120mm fan stays quiet under 200W but gets whiny near max capacity.
Group-regulated design, missing short-circuit protections on the negative 12V, and cheap capacitors.
Non-modular ketchup-and-mustard cables with a CPU 8-pin that is shorter than the spec sheet claims.
Best For
- Grandma's web-browsing desktop using integrated graphics
- Ultra-budget eSports builds pairing a 65W CPU with a slot-powered GPU like the GTX 1650 or RX 6400
- Replacing a dead proprietary power supply in an old Dell or HP office tower
Not Recommended For
- Any gaming PC with a dedicated graphics card requiring external 8-pin PCIe power
- Overclocking setups, due to the dangerous 91.7mV voltage ripple at full load
Watch Out For
- The 12V rail only delivers 387W — if you calculate your system draw based on the 430W sticker, your PC will shut down under load.
- Thermaltake lied about the EPS 12V cable length — you will likely need a $5 extension cable to reach the top-left CPU plug in a standard ATX mid-tower.
- Negative 12V short circuit protection failed in independent lab testing, meaning a specific type of short could fry your motherboard.
- It uses an outdated group-regulated internal design, meaning heavy loads on your GPU will cause the 5V rail (which powers your USB ports and SSDs) to fluctuate wildly.
Full Specifications
| ASIN | B07BFJ91TY |
| Brand | Thermaltake |
| Color | Black |
| Series | THEPSSPD0430NPCWUSW |
| Wattage | 400 watts |
| Model Name | THEPSSPD0430NPCWUSW |
| Form Factor | ATX |
| Item Weight | 3.3 pounds |
| Manufacturer | Thermaltake |
| Connector Type | PCI Express |
| Cooling Method | Air |
| Output Wattage | 600 |
| Item model number | PS-SPD-0430NPCWUS-W |
| Compatible Devices | Personal Computer |
| Product Dimensions | 9 x 4 x 7.25 inches |
| Item Dimensions LxWxH | 9 x 4 x 7.25 inches |
| Item dimensions L x W x H | 9 x 4 x 7.25 inches |
| Is Discontinued By Manufacturer | No |
What Buyers Say
The 91.7mV voltage ripple at full load is the biggest red flag hidden behind the 4.6-star Amazon rating. Buyers building basic office PCs praise the $35 price tag and quiet idle fan, completely unaware of the outdated group-regulated internals. PC builders trying to run dedicated GPUs constantly report random black screens and system reboots when gaming. The EPS 12V CPU cable is notoriously short, forcing many to route it straight across their motherboard instead of behind the tray. Independent lab tests confirm the 12V rail maxes out at 387W, making the 430W sticker highly misleading.
“Bought this to power a used rx580 and my pc just randomly shuts off in the middle of apex legends, the cpu cable barely even reached the plug and I had to stretch it right over my ram sticks. Do not cheap out!!!”
Common Praise
- Keeps basic APU and office builds running silently for years
- Costs less than $40 shipped
- Fits perfectly into older Dell and HP prebuilt cases
- 5-year warranty provides peace of mind for cheap builds
Common Complaints
- System shuts down randomly when paired with mid-range GPUs like the RX 570
- CPU power cable is too short to route behind the motherboard tray in mid-towers
- Ugly multi-colored cables ruin the look of windowed PC cases
- Died after a power surge and took the motherboard with it
Ownership Tips
- Dust builds up quickly in the fan grill because the fan curve stays low until the unit gets dangerously hot.
- The non-modular cables are stiff and require zip-ties to keep them away from case fans.
- Coil whine often develops after 6-12 months of daily use.
Frequently Asked Questions
Can this power an RTX 3060 or RX 6600?
No. The 12V rail only supplies 387W, and the 91.7mV voltage ripple under heavy load will cause system crashes or degrade your GPU over time.
Does it come with the power cord that plugs into the wall?
Yes, it includes a standard 3-prong AC power cable in the box.
Will this fit in a micro-ATX case?
Yes, it uses the standard ATX form factor measuring 150mm x 86mm x 140mm, which fits 99% of micro-ATX and ATX cases.
Are the cables modular?
No, all cables are permanently attached. You will need to shove the unused Molex and PCIe cables into your case's basement or hard drive cage.
Is it loud?
The 120mm fan is nearly silent at idle and low loads under 200W. Once you push past 300W, the fan ramps up and becomes noticeably whiny.
Why is this ranked Tier F on the PSU Tier List?
It uses a group-regulated design, cheap capacitors, and failed negative 12V short-circuit protection in Gamers Nexus lab tests.
Buying Guide
You are buying the absolute bare minimum required to turn a computer on safely. This unit uses an outdated internal design that struggles to keep voltages stable during gaming. Skip this entirely if you are building a PC with a dedicated graphics card that requires extra power cables. It belongs exclusively in basic web-browsing machines where the total system draw never exceeds 200 watts.
12V Rail Wattage (387W)
Think of the 12V rail as the main highway for your CPU and graphics card. Even though the box says 430W, the actual highway can only handle 387W of traffic before causing a crash.
Voltage Ripple (91.7mV)
Ripple is like turbulence on an airplane. Modern PC parts expect smooth power under 60mV of turbulence. This unit hits 91.7mV, which slowly damages sensitive components over time.
80 Plus White
This is the fuel efficiency rating. It means the unit wastes 20% of the electricity it pulls from your wall as heat, which is the lowest acceptable standard today.
Alternatives
Search for an '80 Plus Bronze' power supply with a 'DC-to-DC' topology and at least 500W on the 12V rail to safely run a modern budget gaming PC.
